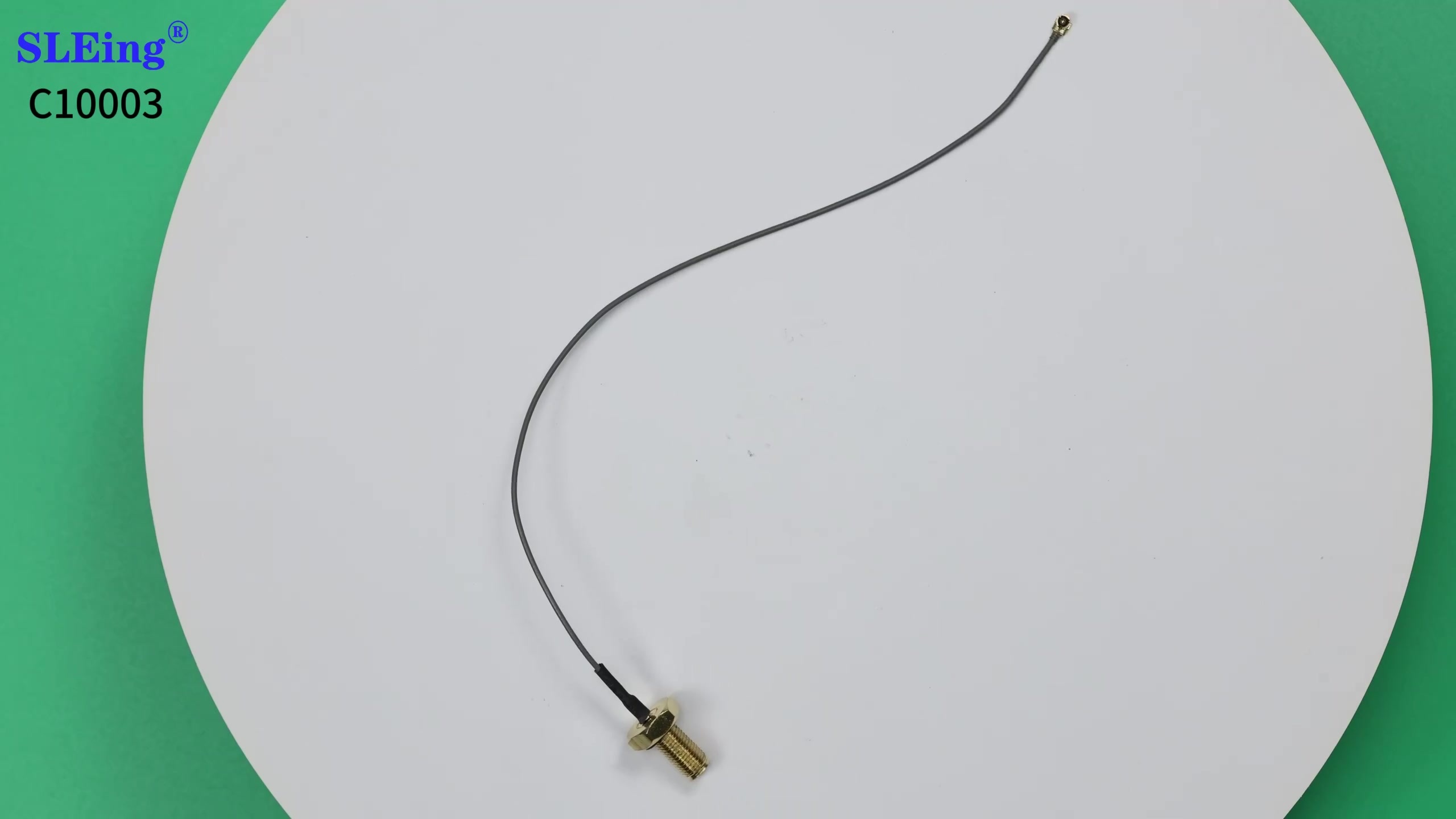

SMA to MHF RF Coaxial Cable 20cm
Product Features
The C10003 SMA female to MHF connector RF coaxial cable can be applied in antennas, WiFi devices, internet connections, and digital audio systems.
Classification：
RF Coacxial Cable Assembly
Keyword：
rf coaxial cables
rf cable
antenna cable

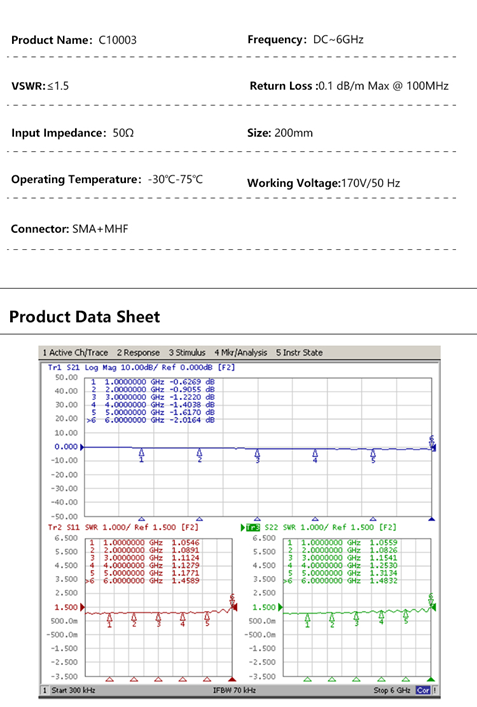

Product description
| Frequency | DC~6GHz |
| Impedance | 50 Ω |
| V.S.W.R | ≤ 1.5 |
| Cable Loss | 0.1 dB/m Max @ 100MHz |
| Working Voltage | 170V/50Hz |
| Connector | SMA Female to MHF |
| Material | Brass |
| Cable Type | Ф1.13mm Grey |
Product Features
SLEing C10003 rf antenna cable is a kind of waterproof DC~6GHz SMA female to MHF connector RF coaxial cable, it’s widely used for antennas, WiFi devices and internet connections. Coaxial cable has a low signal loss rate, which is used for the transmission of Radio Frequency energy where tight impedance and RFI/EMI control is required. It also provides better shielding against interference compared to other types of cables.
Product Advantage
a) Low signal loss
b) Flexibility for different devices
c) Better shielding against interference
d) Easy to install and replaceable
e) Custom design is welcome
