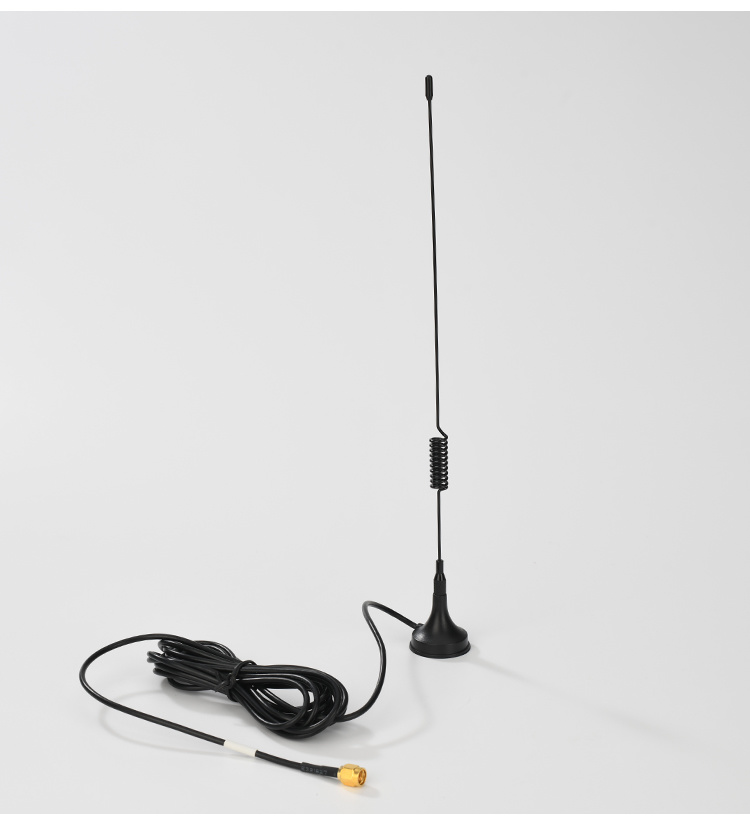

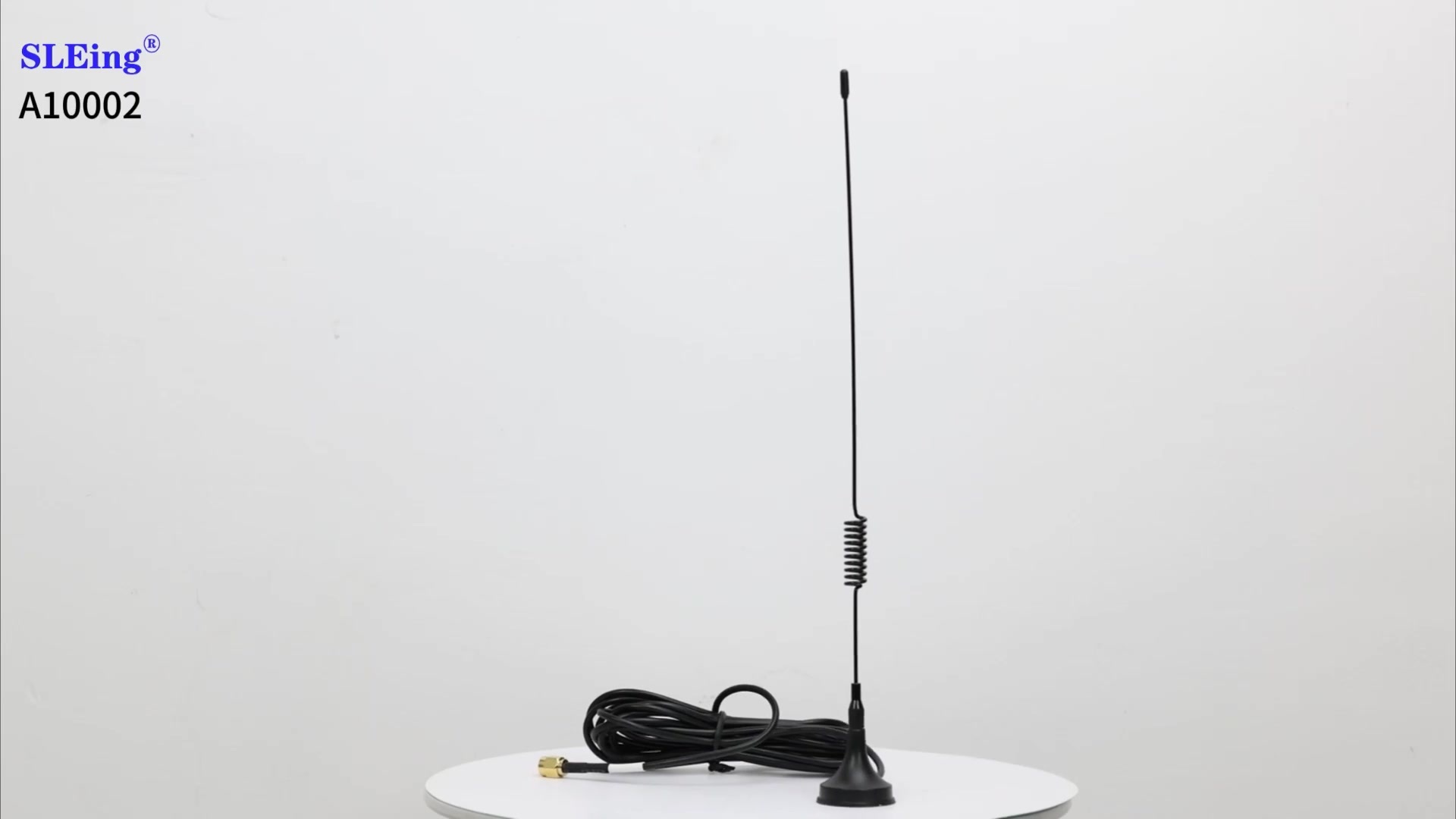

Omni-directional Magnetic Base 4G Sucker Antenna
Product Features

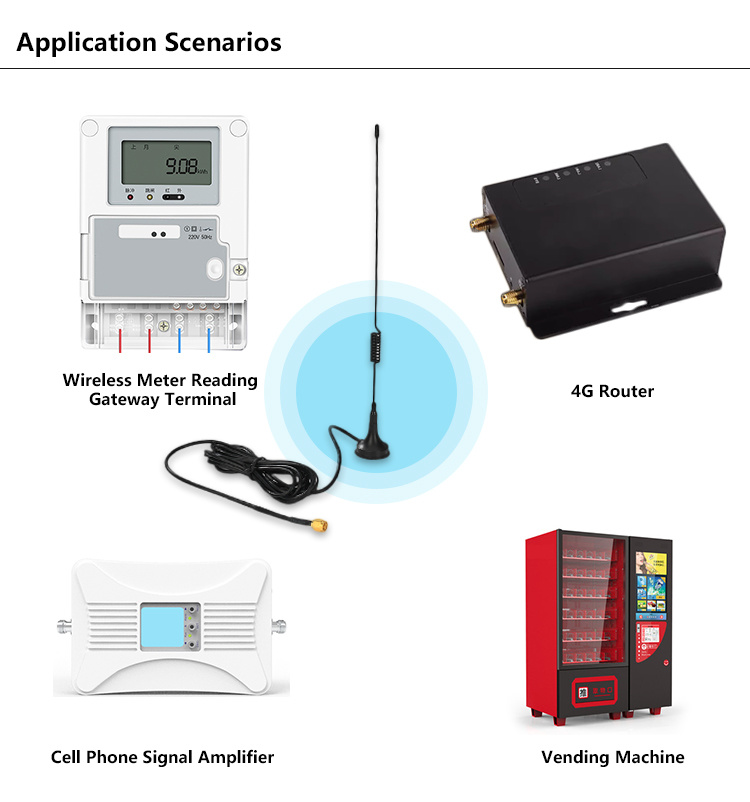

The A10002 4G sucker antenna with RG174 cable, is mainly used in cabinets, vending machines, smart meters, smart devices and cell phone signal boosters.
Classification：
4G Antenna
Keyword：
4G antenna
sucker antenna
magnetic base antenna
Product description
Product Description

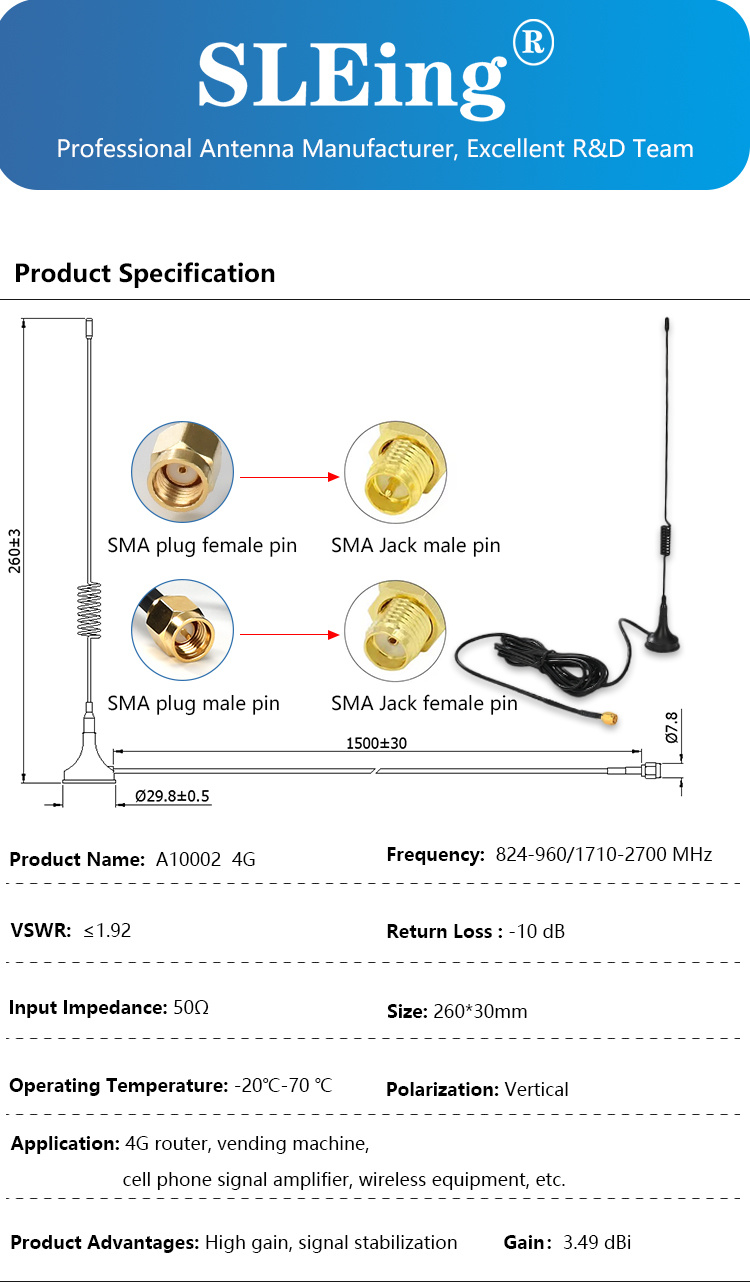

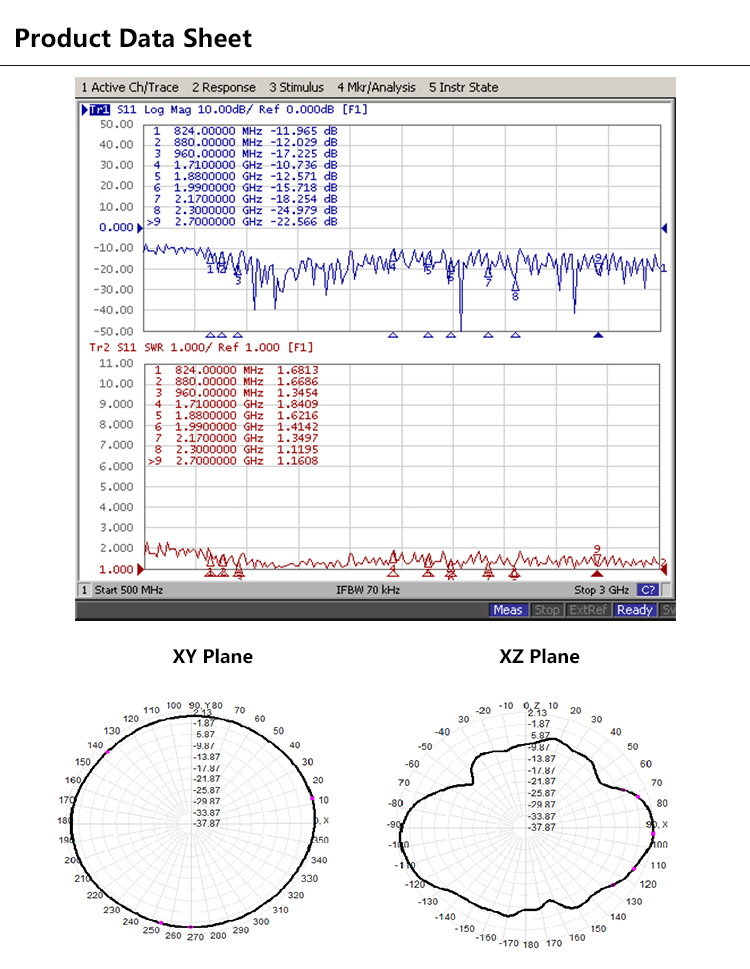

| Frequency | 824-960/1710-2700MHz |
| Impedance | 50 Ω |
| V.S.W.R | ≤ 1.92 |
| Return Loss | -10dB Max |
| Gain(Peak) | 3.49 dBi |
| Connector | SMA |
| Antenna Material | ABS |
| Polarization | Linear, Vertical |
Product Features

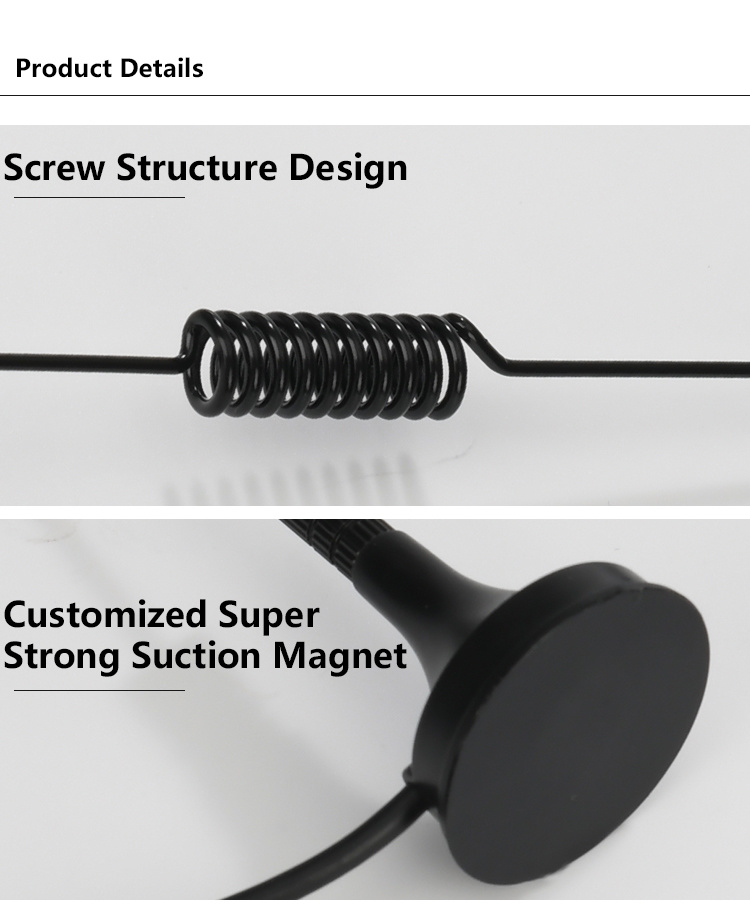

SLEing A10002 antenna is a magnetic mount sucker antenna, the suction cup antenna is mainly used in cabinets, smart meters, smart devices, terminals, car roofs or similar environments. The function of the strong magnetic base is to fix the entire antenna and ensure that the sucker antenna is in conductive contact with the attracted metal. Feeder cables for A10002 magnetic base antenna RG series are available, such as RG174 and RG5B, etc.
Product Advantage
a) Easy installation
b) Non-damaging to smooth, non-porous surfaces
c) Strong magnetic base, removable, portable and adjustable
