4G Magnetic Base Antenna Suction Cup Antenna
Product Features

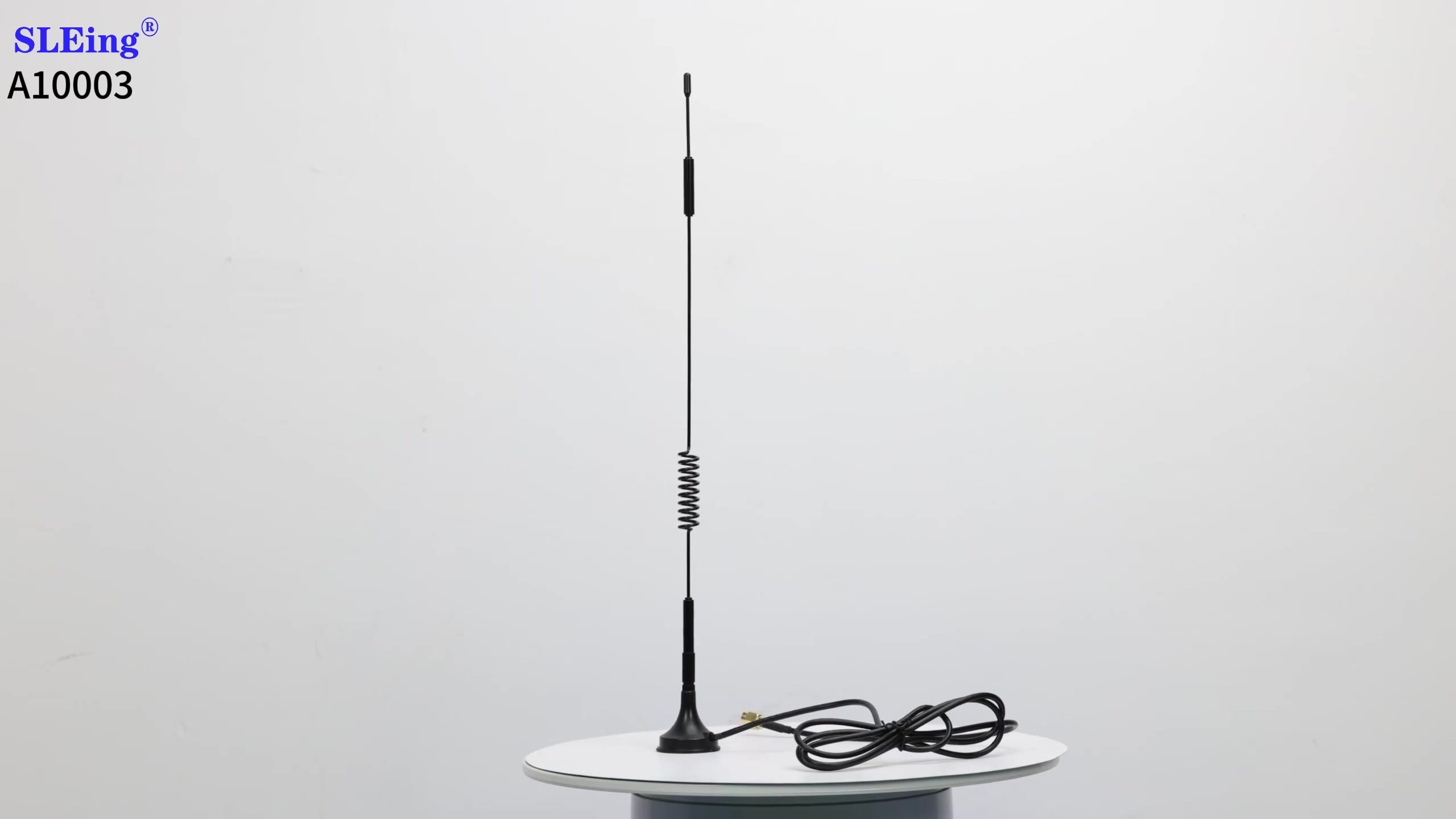

The A10003 4G suction cup antenna with RG174 cable, is mainly used in cabinets, vending machines, smart meters and smart devices.
Classification：
4G Antenna
Keyword：
4G antenna
suction cup antenna
magnetic base antenna
Product description
Product Description

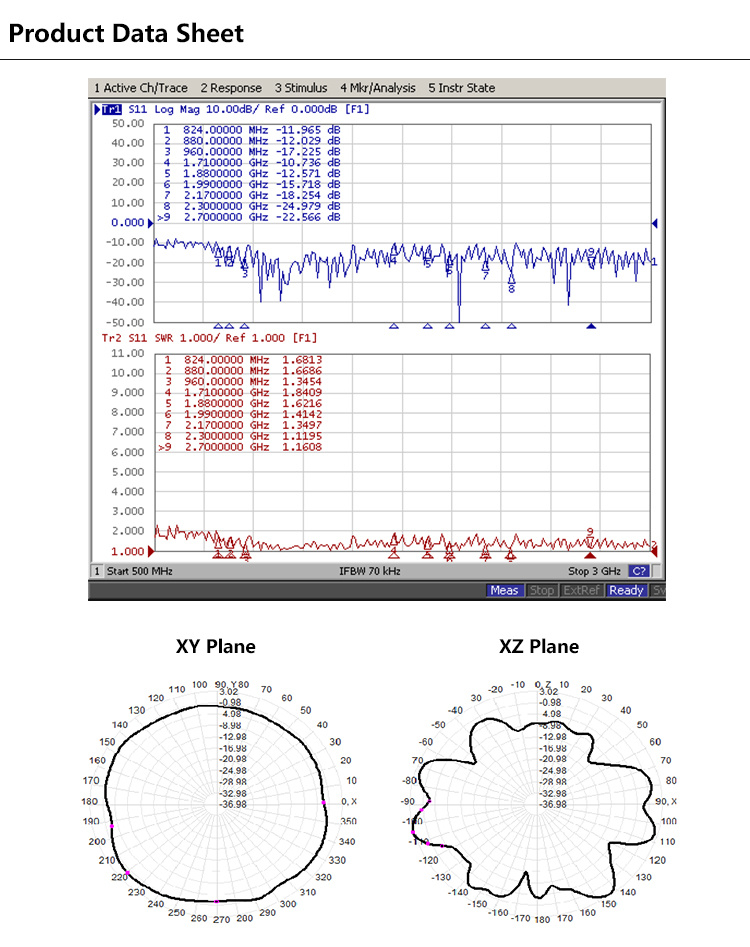

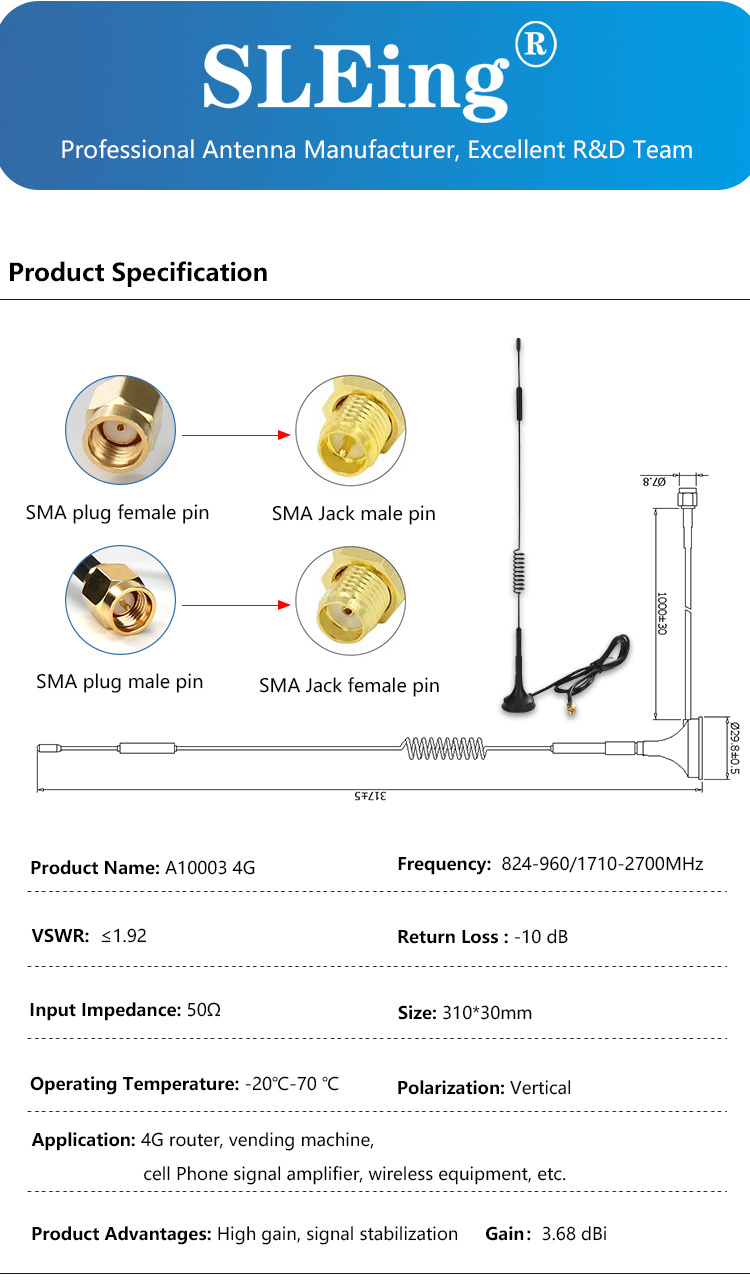

| Frequency | 824-960/1710-2700MHz |
| Impedance | 50 Ω |
| V.S.W.R | ≤ 1.92 |
| Return Loss | -10dB Max |
| Gain(Peak) | 3.68 dBi |
| Connector | SMA |
| Antenna Material | ABS |
| Polarization | Linear, Vertical |
Product Features

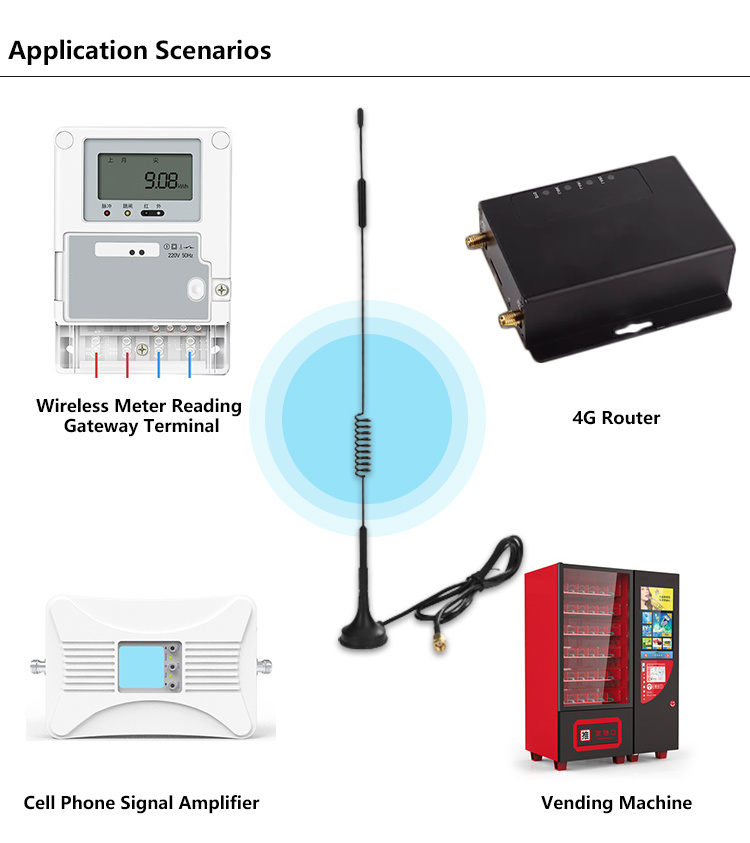

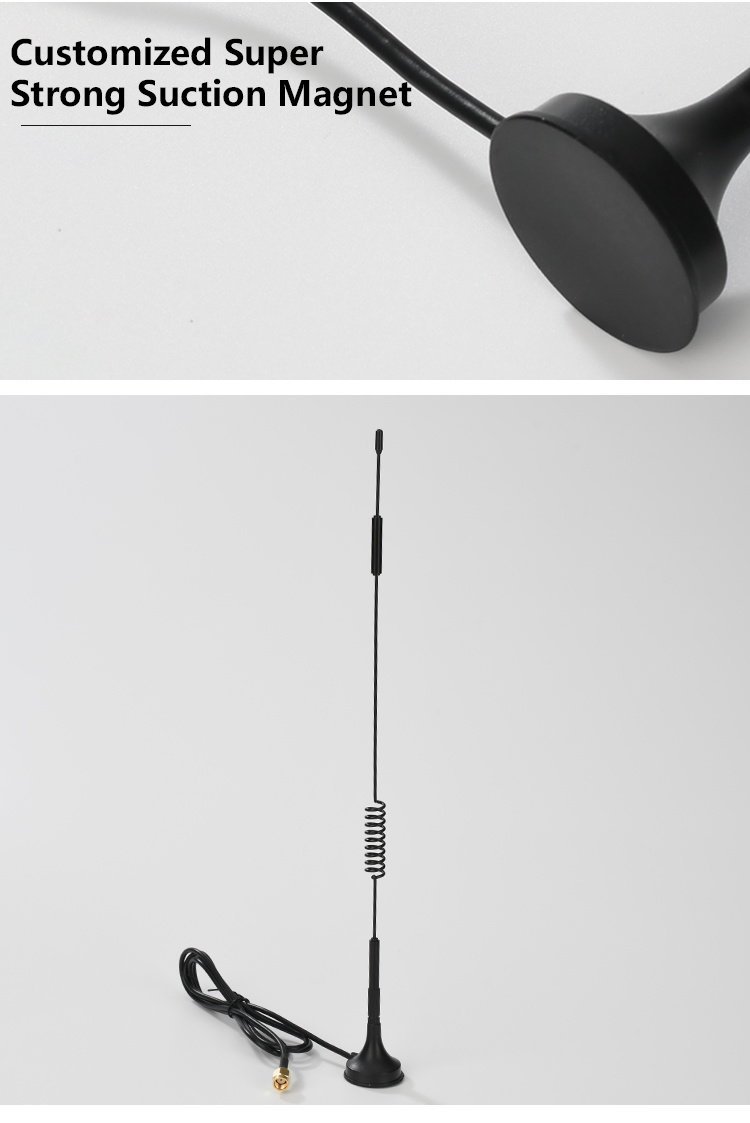

SLEing A10003 antenna is a magnetic base antenna, the suction cup mount antenna is mainly used in cabinets, smart meters, smart devices, terminals, car roofs or similar environments. The function of the strong magnetic base is to fix the entire antenna and ensure that the sucker antenna is in conductive contact with the attracted metal. Feeder cables for A10003 magnetic base antenna RG series are available, such as RG174 and RG5B, etc.
Product Advantage
a) Easy installation
b) Non-damaging to smooth, non-porous surfaces
c) Strong magnetic base, removable, portable and adjustable
