2.4G WiFi Rubber Duck Antenna
Product Features

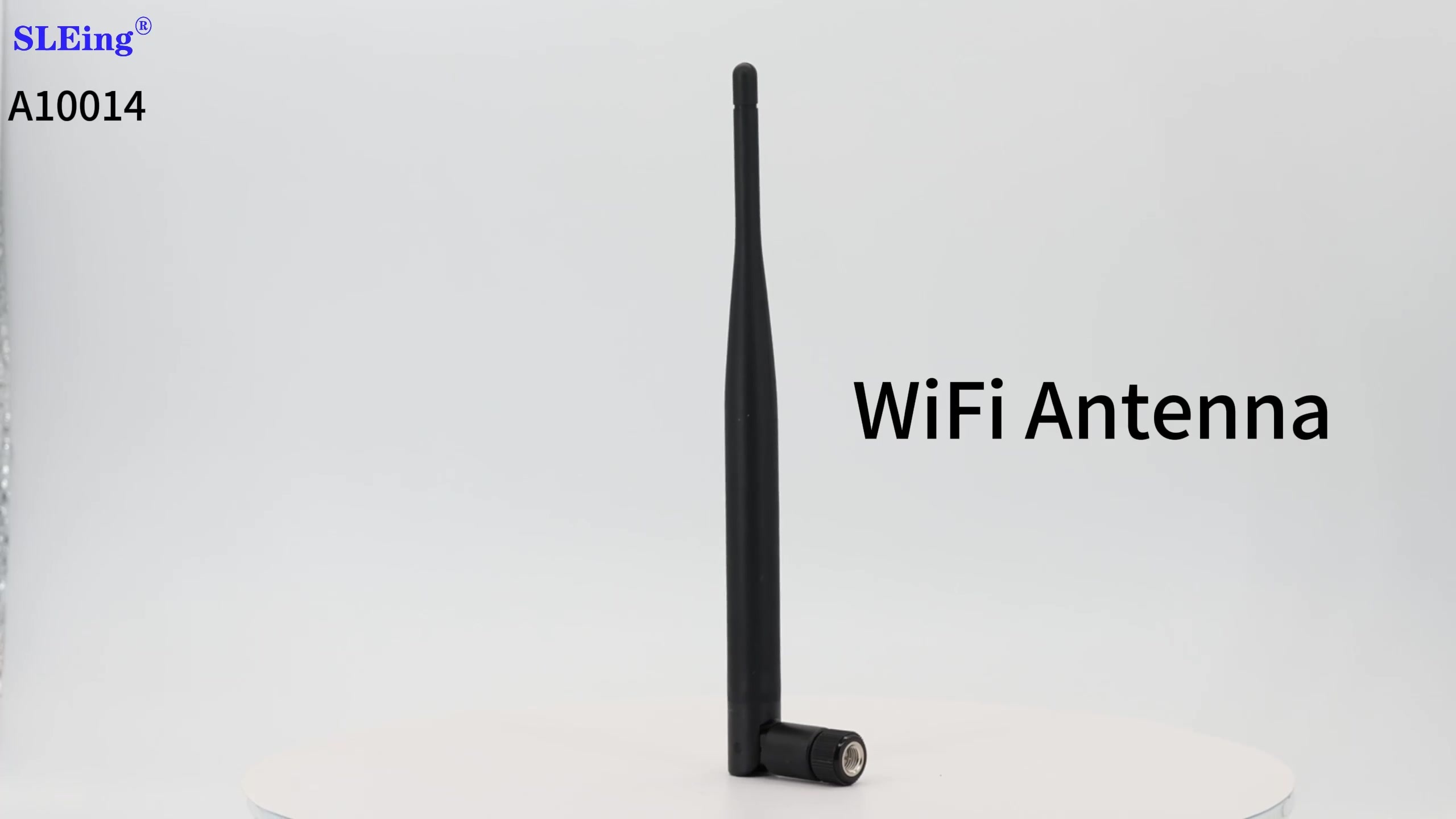

The A10014 2.4G WiFi rubber duck antenna with SMA connector, can be applied in wireless routers, wireless devices, low bandwidth activities and drone communications.
Classification：
WiFi Antenna
Keyword：
WiFi antenna
2.4G WiFi antenna
rubber duck antenna
Product description
Product Description

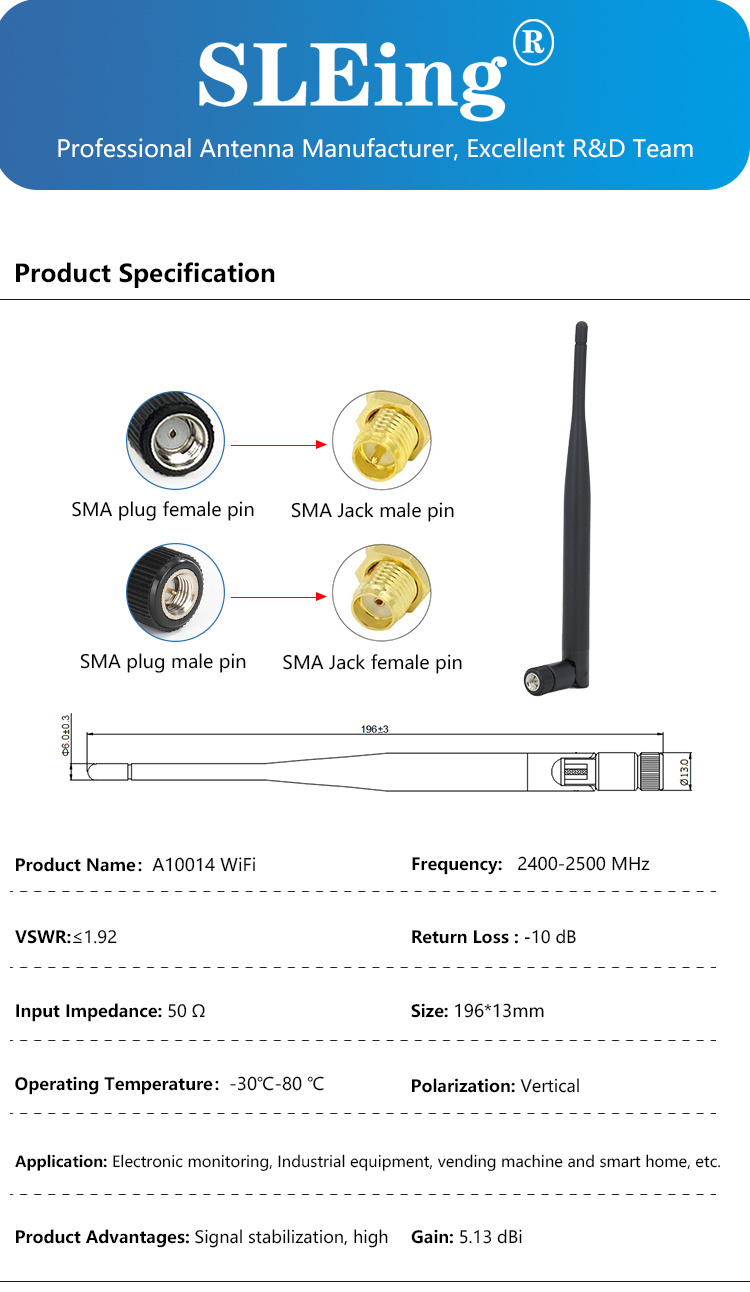

| Frequency | 2400-2500 MHz |
| Impedance | 50 Ω |
| V.S.W.R | ≤ 1.92 |

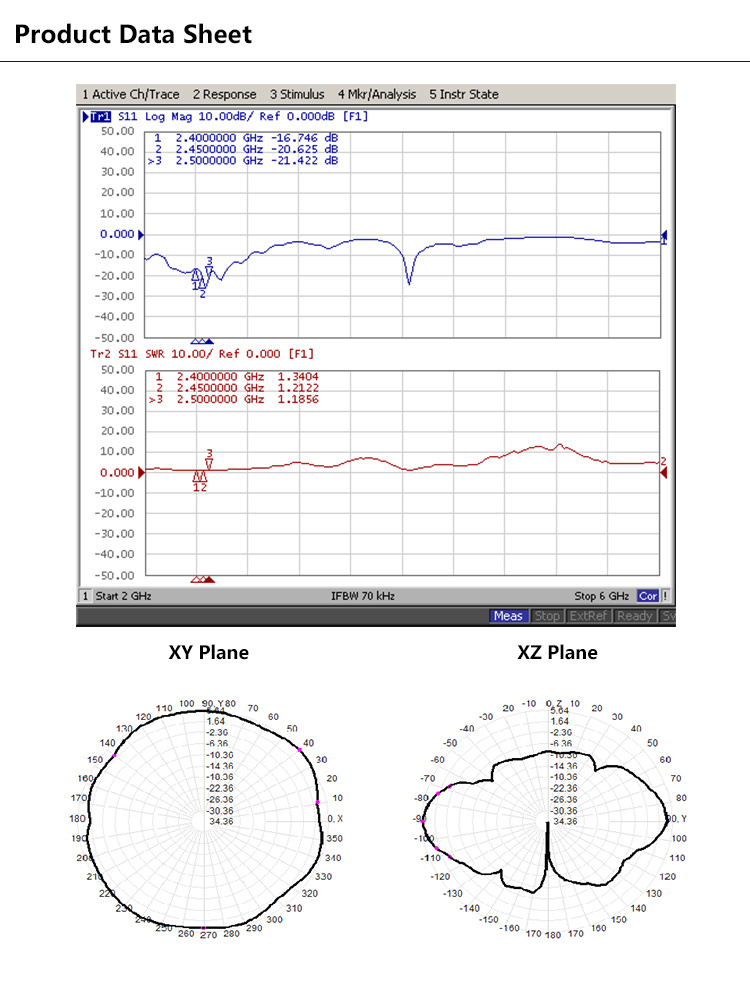

| Return Loss | -10dB Max |
| Gain(Peak) | 5.13 dBi |
| Connector | SMA |
| Antenna Material | ABS/PC+PBT |
| Polarization | Linear, Vertical |
Product Features
SLEing A10014 antenna is a kind of 2.4G-2.5G wifi antenna, it is commonly used with routers, IOT devices, long-range internet access, video surveillance and other devices. The 2.4GHz band uses longer transmission waves, which makes it better suited for transmission through walls and other solid objects. Ideally, the 2.4GHz band should be used to connect devices for low bandwidth activities like browsing the Internet.
Product Advantage
a) More prone to interference
b) Longer range and lower data rate
c) Can be used with other technologies
d) Penetrates solid objects, works well in small spaces
